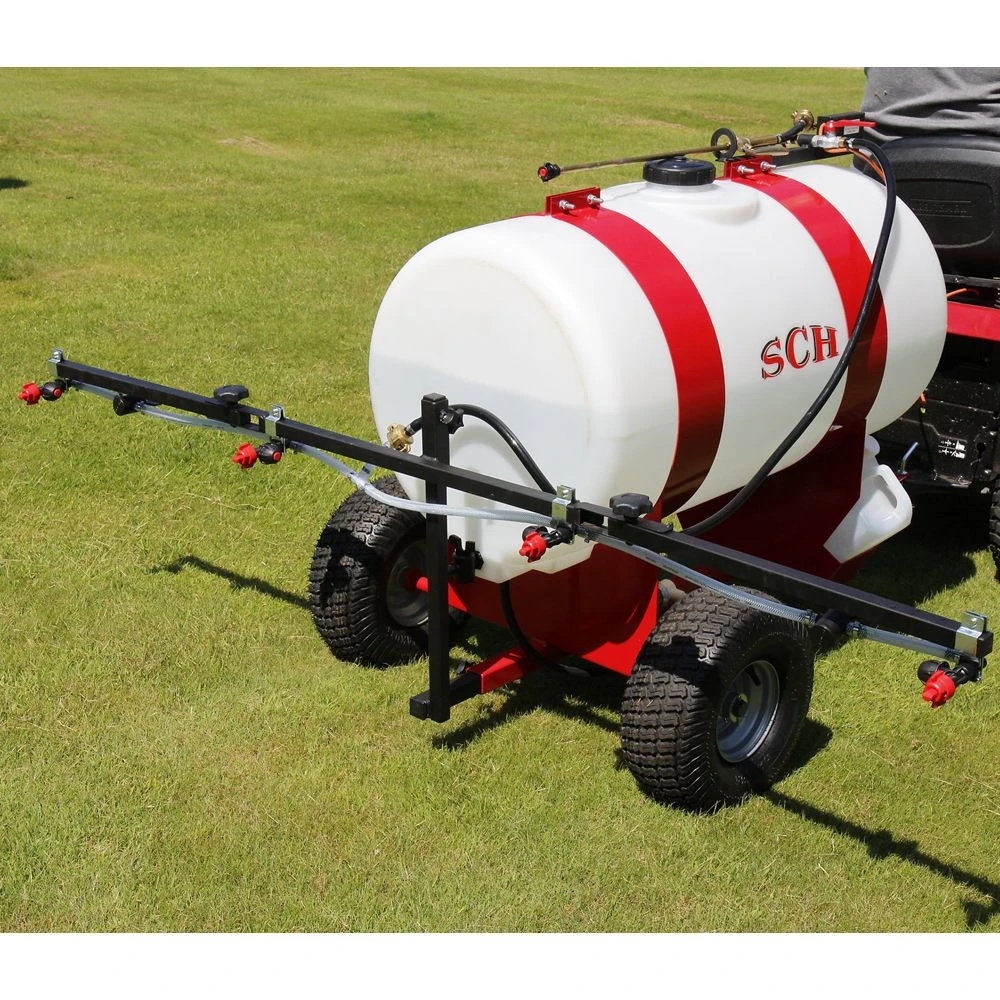

SCH Towed Sprayer 180L GWCS9 Spray Width 48″-96″

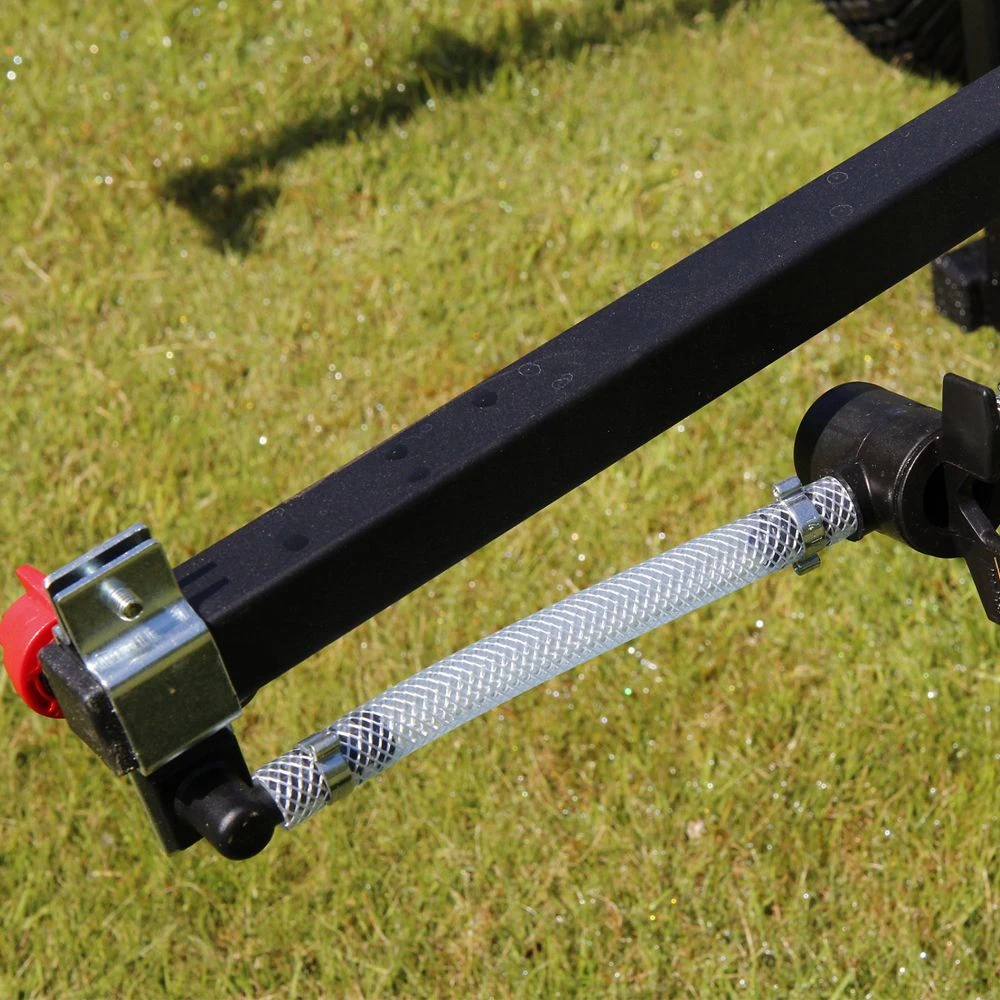

The GWCS9 sprayer is an extremely versatile sprayer ideally suited to the application of herbicides and fertilisers to both large and small areas.  The nozzle at each end of the boom is mounted on a swing back arm so in the event of the boom coming into contact with a tree or shrub, it will simply swing back instead of breaking off.  Once the obstacle is passed, the boom end flips back to its normal position and spraying resumes.

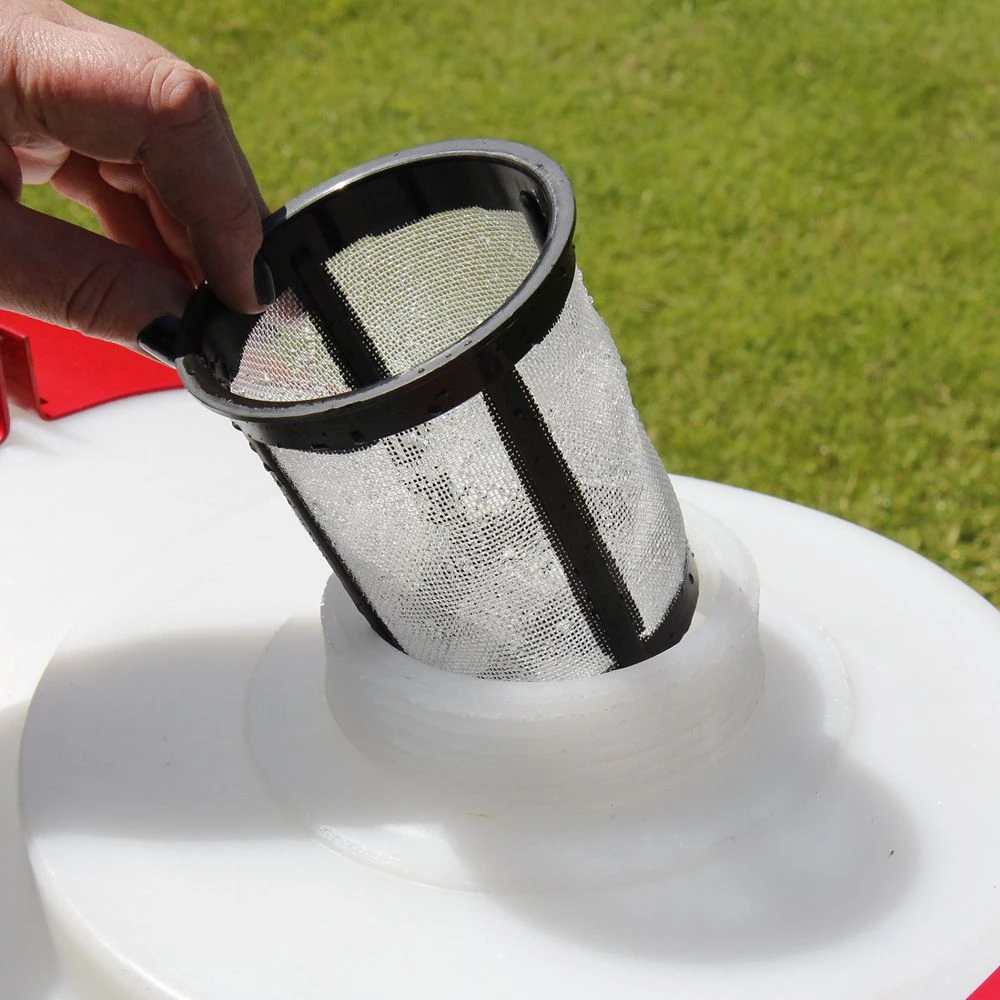

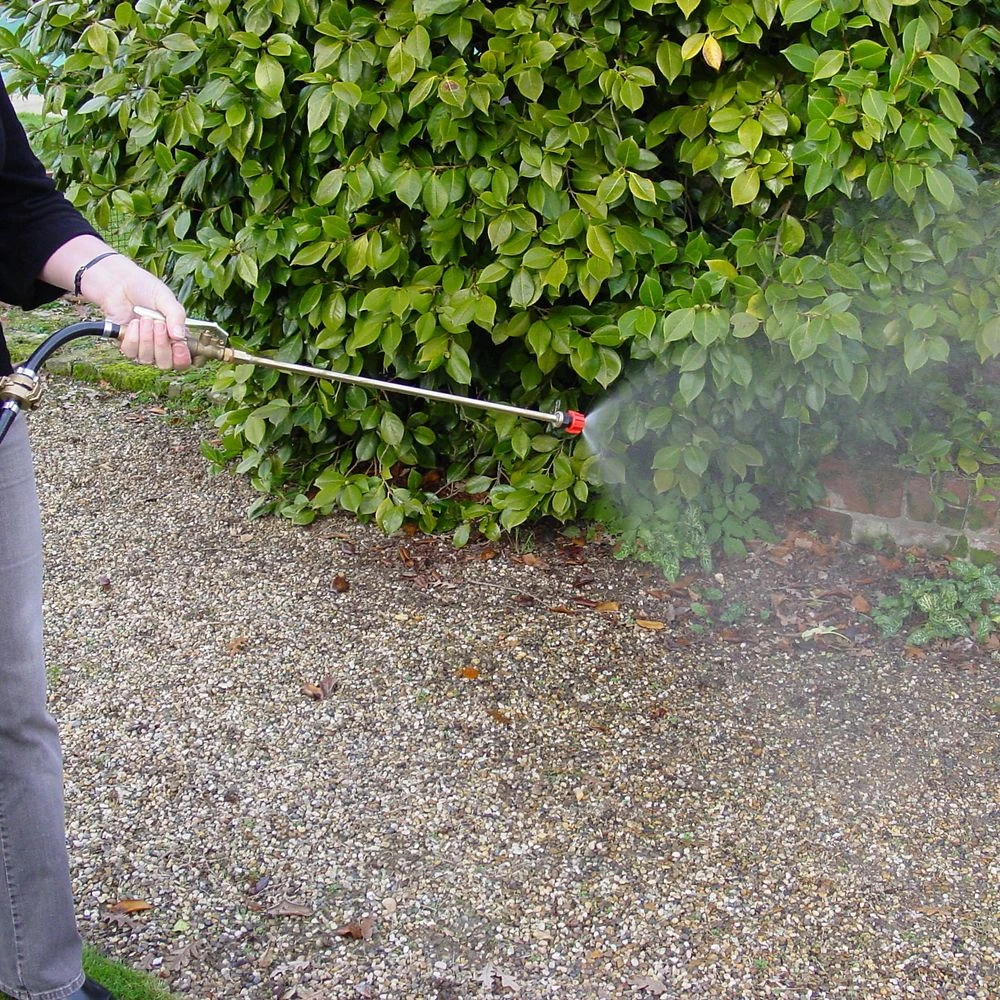

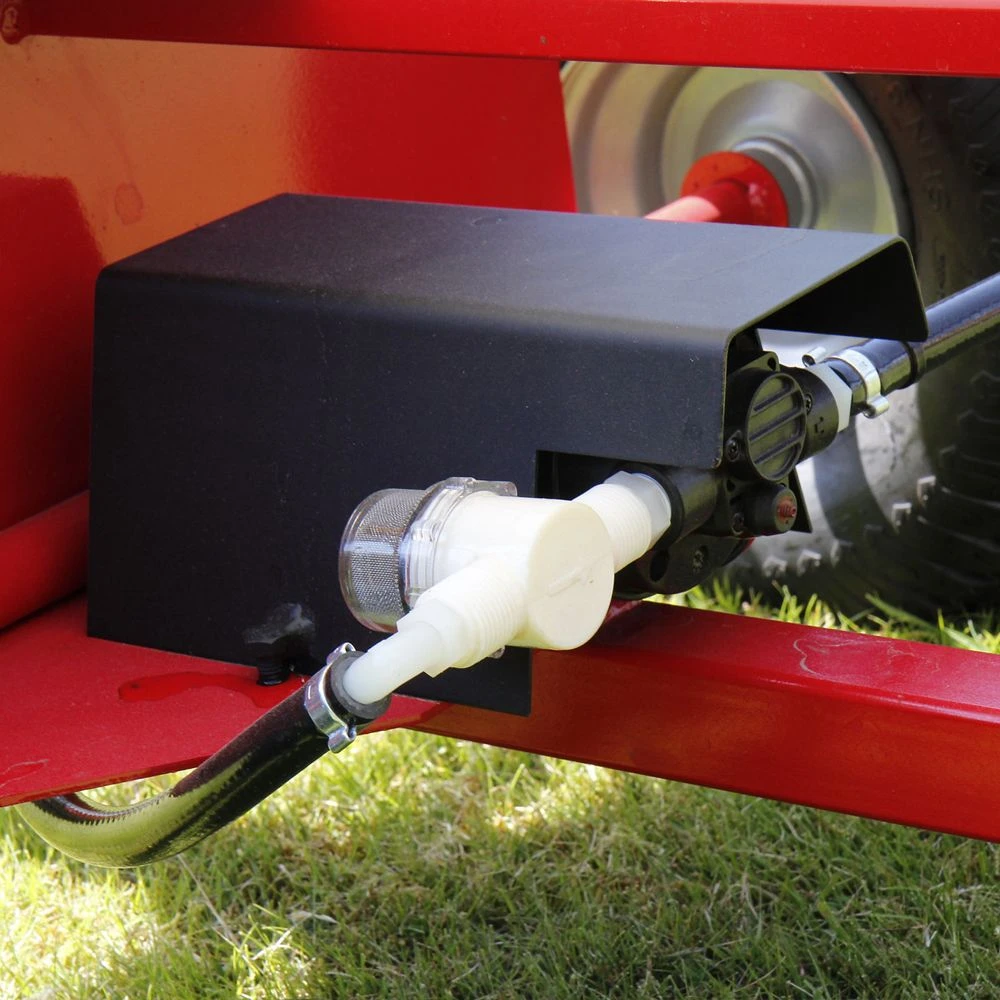

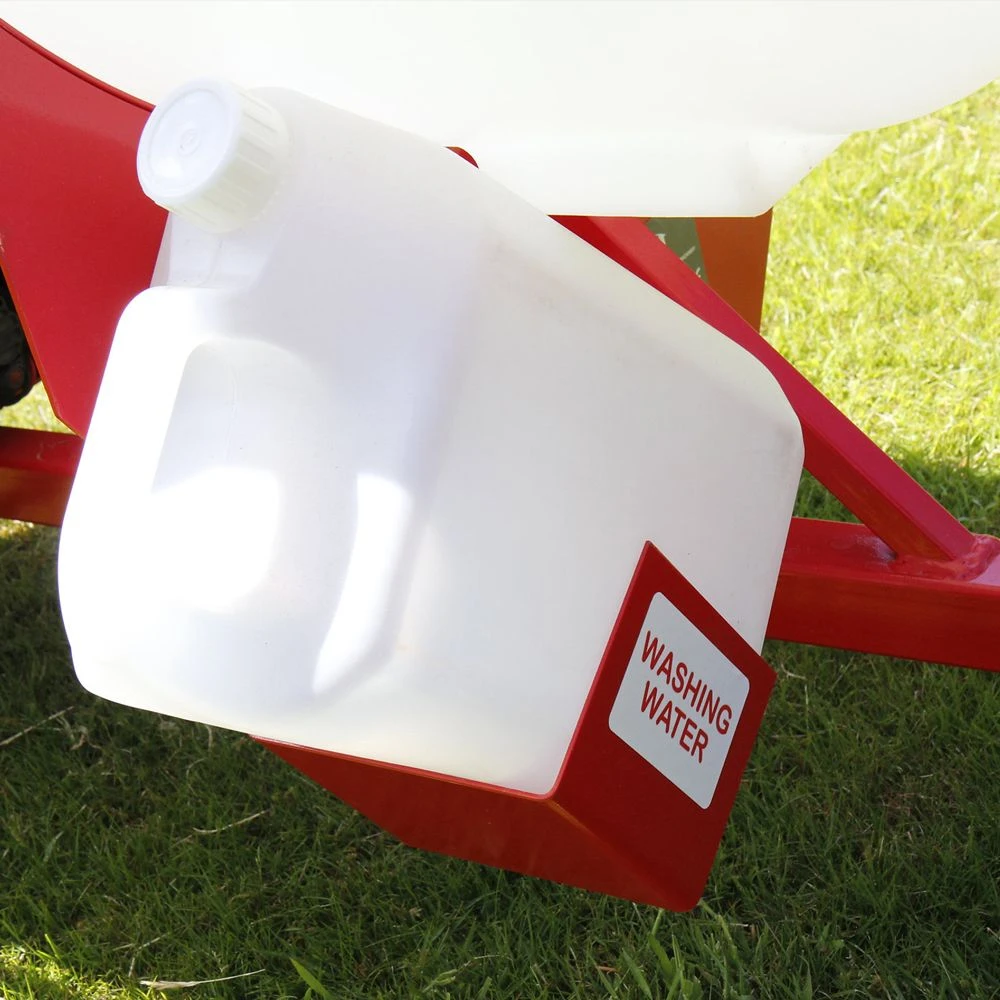

The 12 volt diaphragm pump is powered from the lawn tractor’s battery.  In line filters are incorporated to prevent, as far as possible, irritating stoppages from blocked nozzles.  The spray nozzles are mounted on anti-drip holders preventing the liquid from continuing to flow when the pump is shut down.  A brass hand trigger lance, complete with quick and simple twist connectors, is supplied with this sprayer.  The lance is an useful tool for spot spraying and around trees and shrubs.  A 5 litre wash bottle is mounted on the chassis of the sprayer for dowsing down in case of skin contact with spray liquid.

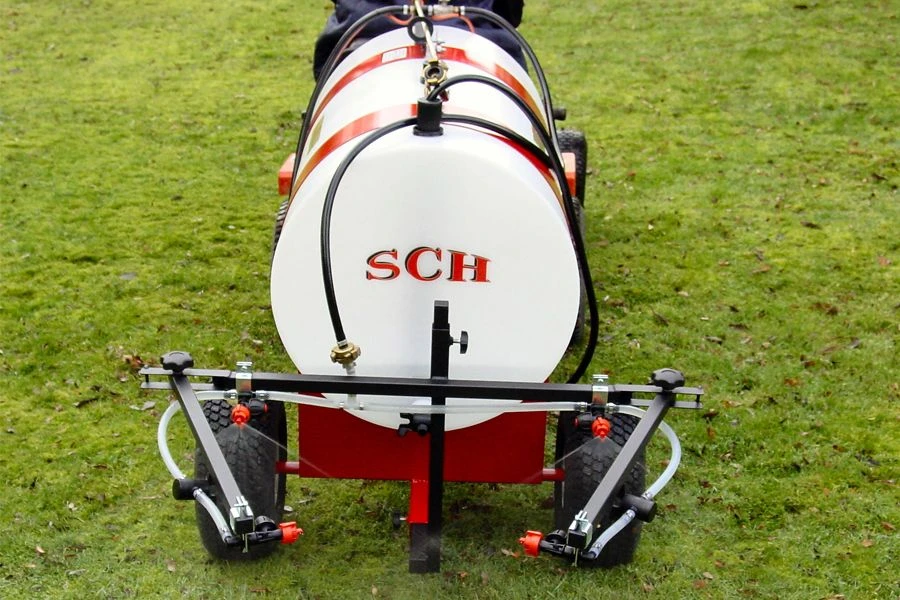

The maximum spray width is 2440mm (96″) and, with tow wing booms folded back and switched off, the spray width reduces to 1220mm (48″).
